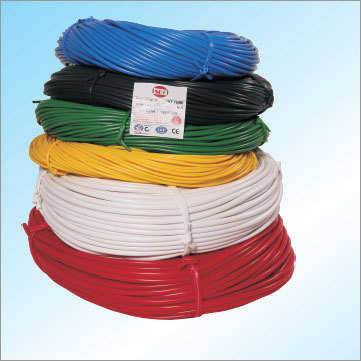

PVC Ferrule Tubes

PVC Ferrule Tubes
PVC Ferrule Tubes
Product Code : 25
Product Description
With long term industry experience, we are engaged in manufacturing, exporting and supplying a qualitative range of PVC Ferrule Tubes. The complete range of tubes is efficiently manufactured with the help of advanced techniques by utilizing optimal quality polyvinyl chloride and is coated with non-toxic powder to ensure its shock proof nature. These tubes are widely used for power transmission purposes in control panel, stabilizers and many more. Also, our clients can avail these PVC Ferrule Tubes in varied colors, lengths, thicknesses and specifications at nominal rates.

Features:

  • Unique round profile for customized cable and wire marking

  • Reduces marking costs in projects for frequent, fast and late stage alterations.

  • Fast to use bulk reel and box format.

  • Made from premium virgin PVC compound developed in-house by SGI

  • Also available in lead free material confirming to ROHS norms

  • Widely used for printing markers on all types of Ferrule printing machine.

Material

Made from premium Heavy metals free ROHS compliant PVC compound developed in-house by SGI



Item No

Inner diameter (in mm)

Wall thickness (in mm)

Standard packing

Suitable for wire size

MS2.2

2.20

0.35

100 mtr roll

0.5 sq.mm

MS2.5

2.50

0.35


0.5-0.75 sq.mm

MS3.0

3.00

0.40


1.0-1.5 sq.mm

MS3.2

3.20

0.40


1.0-1.5 sq.mm

MS3.5

3.50

0.45


2.5 sq.mm

MS4.0

4.00

0.45


2.5-4.0 sq.mm

MS4.2

4.20

0.45


4 sq.mm

MS4.5

4.50

0.45


4.0 sq.mm

MS5.0

5.00

0.45


4.0-6.0 sq.mm

MS5.2

5.20

0.45


6.0 sq.mm

MS5.5

5.50

0.50


6.0 sq.mm

MS6.0

6.00

0.50


6.0-10.0 sq.mm

MS7.0

7.00

0.50


10.0 sq.mm

MS8.0

8.00

0.50


16.0 sq.mm

MS9.0

9.00

0.50


16.0 sq.mm

MS10.0

10.00

0.50


25.0 sq.mm

MS12.0

12.00

0.60


35.0 sq.mm
